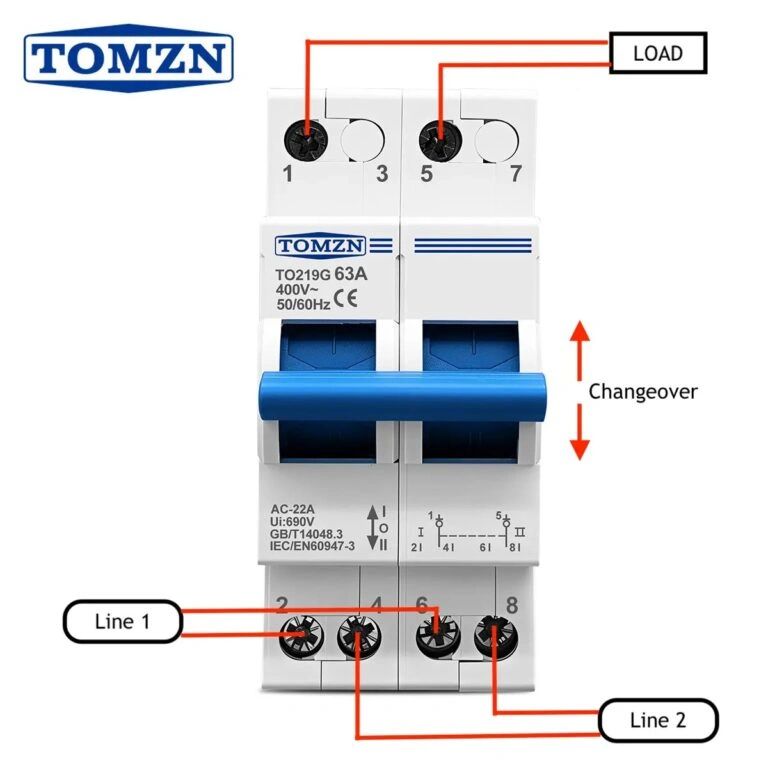

TOMZN TO219G 63A 400V AC Dual Power Manual Transfer Switch (MTS)
1,100.00৳
Ask more info
Description
TOMZN TO219G 63A 400V AC Dual Power Manual Transfer Switch (MTS) Price in Bangladesh
The TOMZN TO219G is a 4-pole manual transfer switch (MTS) rated for 63A at 400V AC. It allows for manual switching between two independent power supplies (e.g., City Power and Generator) while providing a center “OFF” position for complete circuit isolation and safe maintenance.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TOMZN |
| Model | TO219G |
| Product Type | Manual Transfer Switch (MTS) / Dual Power Changeover Switch |
| Rated Current | 63 A |
| Rated Voltage | AC 400 V |
| Poles | 4 Pole (3 Phase + Neutral) |
| Rated Frequency | 50/60 Hz |
| Insulation Voltage (Ui) | 690 V |
| Rated Short-time Withstand Current (Icw) | 10 kA (for 1s) |
| Rated Short-circuit Making Capacity (Icm) | 10 kA |
| Electrical Life | 1500 Cycles |
| Mechanical Life | 8000 Cycles |
| Operating Temperature | -5°C to +40°C |
| Storage Temperature | -25°C to +55°C |
| Mounting Type | 35mm DIN Rail or Screw Mounting |
| Protection Degree | IP20 |
| Standard | IEC 60947-6-1 |
| Material | Flame-retardant PC plastic, Copper Contacts |
| Dimensions (L x W x H) | 107 mm x 95 mm x 77 mm (Approximate) |
| Weight | 0.65 kg (650 grams) (Approximate) |
Features
- 4-Pole Configuration: Simultaneously switches 3 phases and the Neutral line, ensuring total isolation and safety for 3-phase 4-membered systems.
- Mechanical Interlock: A built-in physical barrier prevents the handle from engaging both power sources at once, eliminating the risk of back-feeding and short circuits.
- Three Stable Positions (I-O-II): * Position I: Connects to Source 1 (Grid).
- Middle Position (O): Disconnects all loads (Safety/Maintenance mode).
- Position II: Connects to Source 2 (Generator/Solar).
- High Breaking Capacity: Rated to handle up to 63A continuous current with high short-circuit making capacity for industrial-grade protection.
- Flame Retardant Material: Constructed with high-quality, heat-resistant PA66 plastic for maximum durability in harsh environments.
- Easy Installation: Standard 35mm DIN rail mounting makes it compatible with most modern electrical panels and MCB boxes.
